GC 339 * Safety sensor for automatic swing, revolving and curved sliding doors as well as windows

GC 339 Light curtain Active infrared detector with self-monitoring function to the protection and activation of automatic doors
  • Reliable detection up to an installation height of 3500 mm.
  • Ten adjustable light curtain configurations without additional light prisms
  • Convenient commissioning via matrix display
  • Auxiliary LEDs aid in optimal positioning of the interior light curtain in front of the door leaves during commissioning
  • Door opening impulse only triggered if needed
  • Avoidance of hazards at pinching and shearing edges on automated windows
Contact us

Safety sensor for automatic swing, revolving and curved sliding doors as well as windows

Application Areas

  • Protection and activation of automatic swing, revolving and curved sliding doors
  • Automatic sliding doors without protective leaves to the protect secondary closing edge
  • Interior and exterior doors
  • Protection of the main and secondary closing edges on automated windows

Technical data

GC 339

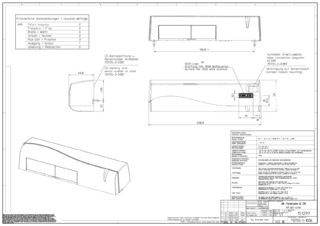

Dimensions 209 x 58 x 47 mm
Technology Active infrared beams
Operating current 125 mA
IP rating IP54
Cable connection type System plug-type connector
Connection cable length 2600 mm
Installation height (min.) 2000 mm
Installation height (max.) 3500 mm
Weight 250 g
Service temperature -25 °C - 55 °C
Humidity 0-95 % relative, non-condensing
Approvals EN 16005, DIN 18650
