RWA K 600 T * Retractable arm drive for air intake systems for installation on doors

RWA K 600 T Retractable arm drive suitable for opening doors and windows as an air vent opening and for ventilation
  • 90° door opening in less than 60 seconds
  • Powerful drive with high torque
  • Connector cable easy to replace by means of plug
  • Integrated status contact for electric strike control unit or feedback signals
  • Door remains freely accessible due to the freely positioned activation of the lever by means of a pressure roller
Contact us

RWA K 600 T

Application Areas

  • Use in the supply air system where large opening angles are required
  • Single and double leaf smoke and heat extraction air-inlet doors
  • Installation on the hinge or opposite hinge side

Installation situations in reference objects and videos

GEZE K 600 F retractable arm drive + locking drive

GEZE K 600 F retractable arm drive + locking drive

© Lorenz Frey / GEZE GmbH

K 600 retractable arm drive Equipped with the retractable arm drive K 600 for fresh air supply in the event of fire.

K 600 retractable arm drive

Equipped with the retractable arm drive K 600 for fresh air supply in the event of fire. © Robert Sprang / GEZE GmbH

K 600 retractable arm drive Equipped with the retractable arm drive K 600 for fresh air supply in the event of fire.

K 600 retractable arm drive

Equipped with the retractable arm drive K 600 for fresh air supply in the event of fire. © Robert Sprang / GEZE GmbH

RWA K 600 T Retractable arm drive for air intake for installation on doors

RWA K 600 T

Retractable arm drive for air intake for installation on doors © Lorenz Frey / GEZE GmbH

Emergency exit Tissot Arena Biel with RWA K 600 Staircase and emergency exit of the Tissot Arena Biel with retractable arm drive RWA K 600 on double leaf door with closing sequence control.

Emergency exit Tissot Arena Biel with RWA K 600

Staircase and emergency exit of the Tissot Arena Biel with retractable arm drive RWA K 600 on double leaf door with closing sequence control. © Lorenz Frey / GEZE GmbH

Retractable arm drive RWA K 600 emergency exit Retractable arm drive RWA K 600 to emergency exit for escape route, double leaf with closing sequence control. Installed at the Tissot Arena Biel.

Retractable arm drive RWA K 600 emergency exit

Retractable arm drive RWA K 600 to emergency exit for escape route, double leaf with closing sequence control. Installed at the Tissot Arena Biel. © Lorenz Frey / GEZE GmbH

Technical data

RWA K 600 T
DIN direction left / right
Service temperature -5 - 75 °C
Mechanical self-locking No
Panic function / mechanical self-locking Yes
Current consumption N/A, N/A
Connector cable length 5 m

Downloads

Emergency exit Tissot Arena Biel with RWA K 600

LABELLING OBLIGATION:  © Lorenz Frey / GEZE GmbH

Installation situation (866176)
GEZE K 600 F retractable arm drive + locking drive

LABELLING OBLIGATION:  © Lorenz Frey / GEZE GmbH

Installation situation (1812045)
K 600 retractable arm drive

LABELLING OBLIGATION:  © Robert Sprang / GEZE GmbH

Installation situation (1259653)
K 600 retractable arm drive

LABELLING OBLIGATION:  © Robert Sprang / GEZE GmbH

Installation situation (1259659)
Retractable arm drive RWA K 600 emergency exit

LABELLING OBLIGATION:  © Lorenz Frey / GEZE GmbH

Installation situation (866174)
RWA K 600 T

LABELLING OBLIGATION:  © Lorenz Frey / GEZE GmbH

Installation situation (866177)
RWA K 600 T

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (47956)

Variants & Accessories

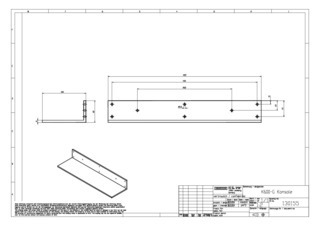

Console T for RWA K 600
Accessories

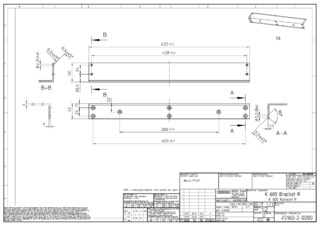

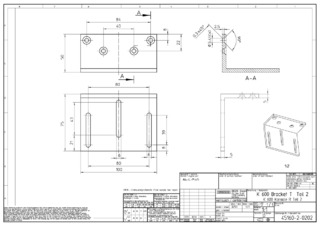

Bracket T for RWA K 600

Mounting bracket for K 600 retractable arm drive

Product details

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
