Laser scanner

GC 342+ * Laser scanner for the protection of automatic swing doors with integrated object and wall blanking

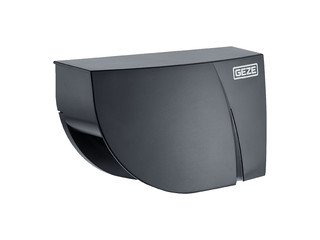

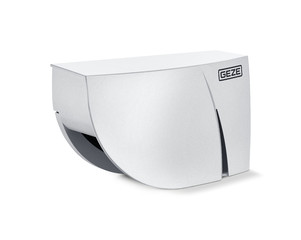

GC 342+ laser scanner, single sensor right
  • Compact and space-saving safety sensor
  • Narrow detection area secures door leaf widths up to max. 1600 mm
  • Integrated object and wall blanking near maximum door opening
  • Protection area on the main closing edge is automatically expanded depending on the door angle
  • Automatized teaching of the system with the push of a button
  • Avoidance of hazards at pinching and shearing edges on automated windows
Show more
  • Four laser curtains secure a large area, and prevent the door from closing if there is anybody within the door frame
  • Laser curtains can be used for non-contact door control via an output signal
Contact us

Application Areas

  • Protection of automatic swing doors, especially for the secondary closing edge
  • Interior and exterior doors
  • Use on doors up to 1600 mm leaf width
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Use on doors with continuous vertical pull handle

Technical data

GC 342+

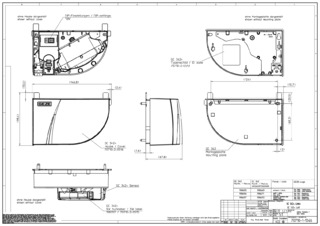

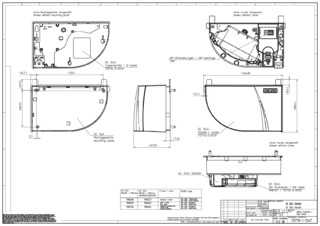

Dimensions 145 x 88 x 68 mm
Technology Laser scanner, light travel time measurement
Number of active infrared detectors 4
Operating voltage 12-24 V DC ± 15%
Switching voltage 42 V
Switching current 100 mA
Output 3 potential-free relay contacts
IP rating IP44
Connector cable length 2500 mm
Installation height (min.) 1500 mm
Installation height (max.) 3870 mm
Reaction time Typically < 120 ms / max. 220 ms (2nd curtain)
Service temperature -25 - 60 °C
Humidity 0-95 % relative, non-condensing
Standard conformity DIN 18650, EN 16005
