ECturn Inside * Integrable electromechanical swing door drive for accessible single leaf doors weighing up to 125 kg

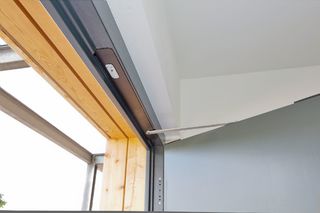

ECturn Inside ECturn Inside for installation inside a door leaf/frame., consisting of drive, installation elements, power supply and guide rail
  • Drive is embedded in door leaf or frame and fulfils maximum design requirements
  • Opening and closing speed can be individually adjusted
  • Electrical latching action which accelerates the door shortly before the closed position
  • Low-energy function opens the door with reduced speed, fulfilling the highest safety requirements
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
Show more
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive is used with guide rail
  • Optional rechargeable battery provides maximum safety during a power failure
  • Optional radio reception board for wireless activation by radio transmitter
Contact us

Application Areas

  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1100 mm leaf width or 125 kg weight
  • Entrance and interior doors with moderate access frequency
  • For door leaf thicknesses from 55 mm
  • Integrated installation in door or frame
  • Barrier-free access

Technical data

ECturn Inside
Leaf weight (max.) 1-leaf 125 kg
Leaf width (min.-max.) 700 mm - 1100 mm
Drive type Electromechanical
Opening angle (max.) 110 °
DIN left Yes
DIN right Yes
Installation in the door leaf Yes
Installation in the door frame Yes
Mechanical latching action No
Electrical latching action Yes
Disconnection from mains Cable plug connection
Activation delay (max.) 20 s
Operating voltage 24 V
Power rating 75 W
Power supply for external consumers (24 V DC) 600 mA
Service temperature -15 - 50 °C
Air humidity non-condensing (max.) 95 %
IP rating IP20
Mode of operation Automatic, Permanently open, Night, Off
Automatic function Yes
Low-energy function Yes
Servo function No
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch integrated in the drive, Programme switch TPS, MPS programme switch
Parameter setting Control unit, Programme switch DPS
Standard conformity EN 16005
