Slimdrive EMD Invers * Electromechanical swing door system for single leaf smoke and heat extraction fresh air opening systems

Slimdrive EMD Invers
  • Opening and closing speed can be individually adjusted
  • Electrical latching action which accelerates the door shortly before the closed position
  • Drive can be used with roller guide rail or link arm
  • Inverse function opens the door via spring force and closes it with a motorised function
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
Show more
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Freely configurable inputs and outputs for different functions
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Contact us

Application Areas

  • Doors along escape and rescue routes
  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1400 mm leaf width or 230 kg weight
  • Smoke and heat extraction fresh air opening systems
  • Interior and exterior doors with high access frequency

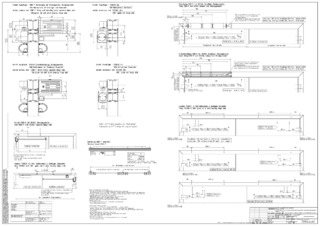

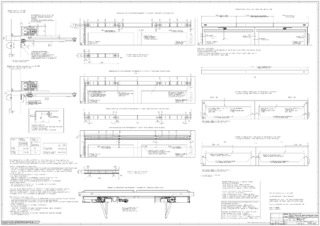

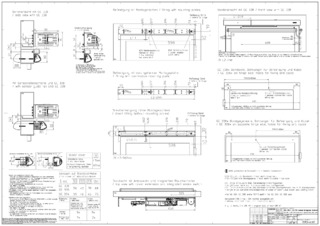

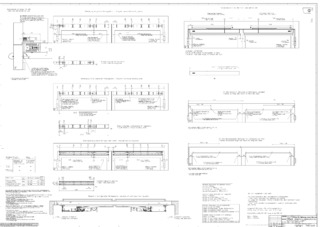

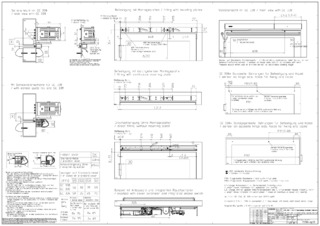

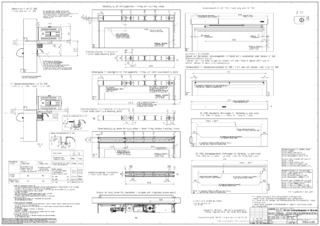

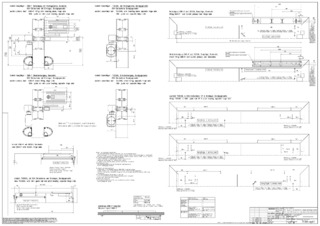

  • Door leaf installation and transom installation

Technical data

Slimdrive EMD Invers
Leaf weight (max.) 1-leaf 230 kg
Leaf width (min.-max.) 750 mm - 1400 mm
Reveal depth (max.) 400 mm
Door overlap (max.) 50 mm
Drive type Electromechanical
Opening angle (max.) 130 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Door leaf installation opposite hinge side with roller guide rail No
Door leaf installation hinge side with roller guide rail Yes
Door leaf installation hinge side with link arm No
Mechanical latching action No
Electrical latching action Yes
Disconnection from mains Main switch in the drive
Activation delay (max.) 20 s
Operating voltage 230 V
Power rating 230 W
Power supply for external consumers (24 V DC) 1000 mA
Service temperature -15 - 50 °C
Air humidity non-condensing (max.) 95 %
IP rating IP20
Mode of operation Automatic, Permanently open, Night, Off, Shop closing
Automatic function Yes
Low-energy function Yes
Servo function No
Inverse function (opening by spring force) Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch integrated in the drive, Programme switch DPS, MPS programme switch
Parameter setting Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth)
Standard conformity DIN 18650, EN 16005
