Panic locks for tubular framed doors

IQ lock EM * Electro-mechanical lever lock for the combination with access control systems on single leaf doors

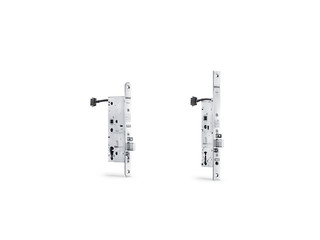

IQ lock EM
  • Mechanical self-locking ensures automatic crossbar projection every time the door is closed
  • Panic function which opens (even locked) emergency exits in the direction of escape
  • Divided cross latch prevents the bolt from locking even under side-load
  • External door handle is decoupled from the lock mechanism
  • Integrated feedback contacts make complete monitoring of the door possible
  • Optional sabotage monitoring or cylinder contact
Show more
  • Small rear backset and small dimensions of the lock case
Contact us

Electro-mechanical lever lock for the combination with access control systems on single leaf doors

Application Areas

  • Single leaf emergency exit and panic doors
  • Doors along escape and rescue routes
  • Fire and smoke protection doors
  • Access control systems

Technical data

IQ lock EM
DIN direction left / right
Service temperature -10 - 50 °C
Supply voltage 12 V DC, 24 V DC, 48 V DC
Panic function / mechanical self-locking Yes
Divided cross latch (3 mm gap between latch and bolt) Yes
Outside handle, can be electrically engaged Yes
Feedback contacts for lock states Yes
Optional sabotage monitoring or cylinder contact Yes
Activation External contact
Power consumption 210 mA at 24 V, 420 mA at 12 V
Contact rating 30 V / 500 mA
Resistant to forcing 10000 N
Connector cable length 10 m
