Building automation systems

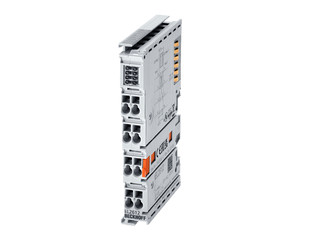

myGEZE Control output terminal 2-channel relay Digital output terminal with two potential-free relay outputs and one change-over contact for each
- Two channels that indicate their signal state through light emitting diodes
- Two changeover outputs
- Status LEDs indicate the output status directly
Digital output terminal with two potential-free relay outputs and one change-over contact for each
Application Areas
- Connection of non-bus-capable components to the GEZE building system
- Suitable for signals with a rated voltage of 125 V AC / 30 V DC
Installation situations in reference objects and videos
myGEZE Control
myGEZE Control takes building automation to a new level – optimally aligned with your requirements. For improved safety, sustainable processes, and better comfort.
Technical data
| myGEZE Control output terminal 2-channel relay | |
| Dimensions | 12 x 100 x 68 mm |
| Service temperature | -10 - 40 °C |
| Type of installation | Top hat rail mounting |
| Switching current | 2 A |
