Fan light and connector patches

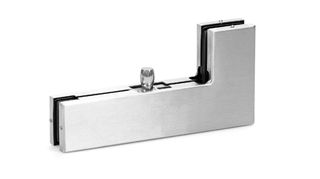

PT 40 Glass Fitting angle fanlight fitting with pivot bearing bolts (ø 15 mm)

GEZE Glass Fitting PT 40 Upper pivot point (with link to fanlight and side fixed panel)
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Application Areas

  • For static toughened glass assemblies
  • For glass thicknesses 10 and 12 mm
  • For internal and external systems

Technical data

PT 40
Dimensions 217 x 32 x 105 mm
Width 32 mm
Length 217 mm
Height 105 mm
Glass thickness (min.) 10 mm
Glass thickness (max.) 12 mm
Type of installation Glass installation

Variants & Accessories
