GEZE TSA 160 NT

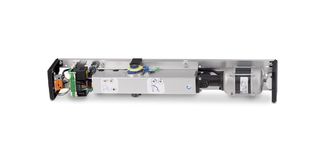

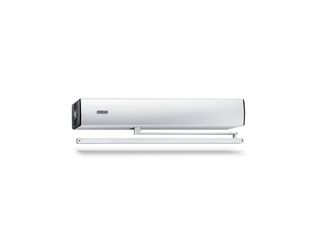

TSA 160 NT * Electro-hydraulic swing door drive for single leaf doors up to 250 kg

TSA 160 NT Electronically controlled hydraulic swing door system for single-action doors of wood, steel or aluminium 120060 (drive) & 020060 (guide rail)
  • Closing force with variable adjustment EN3-6
  • Opening and closing speed can be individually adjusted
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
  • Integrated back check, slows down doors that are thrown open forcefully
Show more
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf

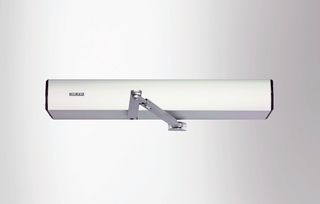

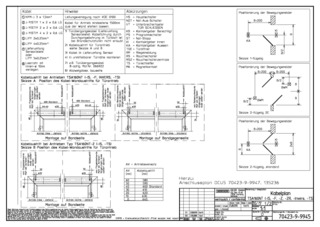

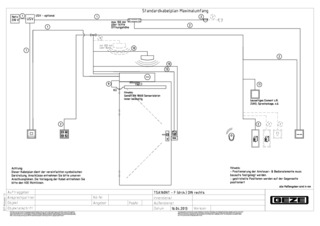

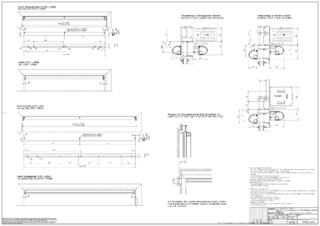

  • Drive can be used with roller guide rail or link arm
Contact us

Electro-hydraulic swing door drive for single leaf doors up to 250 kg

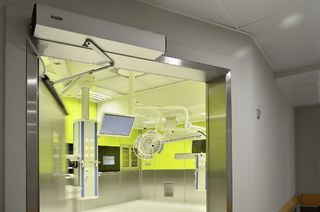

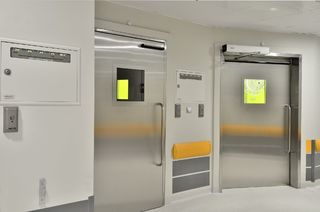

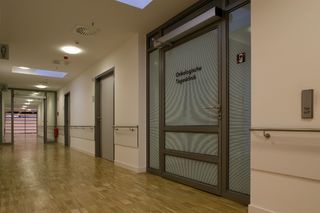

Application Areas

  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1400 mm leaf width or 250 kg weight

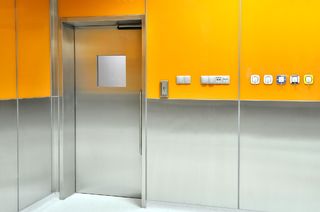

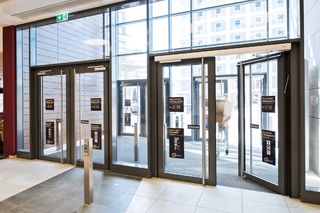

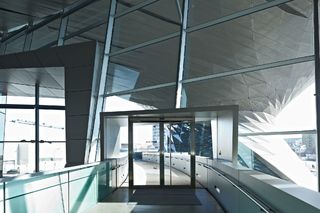

  • Interior and exterior doors with high access frequency

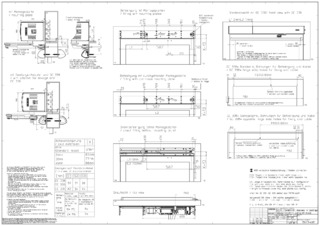

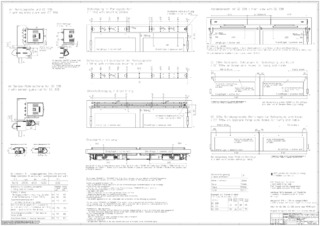

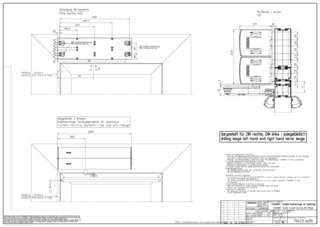

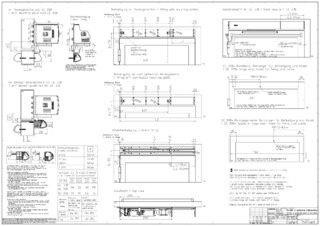

  • Door leaf installation and transom installation

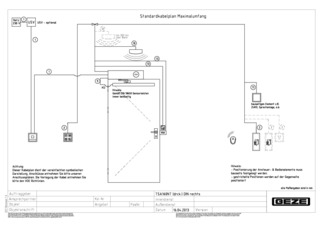

Technical data

TSA 160 NT
Height 100 mm
Depth 121 mm
Leaf weight (max.) 1-leaf 250 kg
Hinge clearance (min.-max.) 2-leaf 1470 mm - 2800 mm
Leaf width (min.-max.) 690 mm - 1400 mm
Reveal depth (max.) 400 mm
Door overlap (max.) 20 mm
Drive type Electrohydraulic
Opening angle (max.) 115 °
Spring pre-load EN3 - EN6
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Mechanical latching action Yes
Electrical closing sequence control Yes
Disconnection from mains Not available
Activation delay (max.) 10 s
Operating voltage 230 V
Power rating 300 W
Power supply for external consumers (24 V DC) 1200 mA
Service temperature -15 °C - 50 °C
IP rating IP20
Mode of operation Off, Automatic, Permanently open, Shop closing, Night
Type of function Fully automatic
Automatic function Yes
function smart swing No
Servo function No
Key function Yes
Vestibule function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS
Parameter setting GEZEconnects (PC + Bluetooth), ST 220 service terminal
Approvals DIN 18650, EN 16005
Suitability for fire protection doors No
Integrated smoke switch No
Use on fire and smoke protection doors (F-variant) No
