Revo.PRIME manual Manual revolving door system with low canopy height and narrow profile system for three- or four-leaf doors
- The door leaves can be activated by gently pushing them
- More cost-effective than automatic drives, since safety devices according to EN 16005 are no longer needed
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Optional speed limiter regulates the peripheral speed when reaching the max. limiting speed
- Optional automatic positioning device returns the door to its original position after a person has passed through it
Manual revolving door system with low canopy height and narrow profile system for three- or four-leaf doors
The most beautiful way to say welcome: the sophisticated Revo.PRIME revolving door makes a great impression in entrance areas with its minimal canopy height of just 75 mm, its narrow profile system of just 60 mm and a barely visible drive. Advanced drive technology also ensures the best possible access convenience and safety.
Application Areas
- Three- and four-leaf door systems
- Interior and exterior doors with low access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 1800 to 3600 mm possible
- Suitable profile systems are fine-framed profile systems with ISO and mono glass, all-glass systems (GGS) and integrated all-glass systems (IGG)

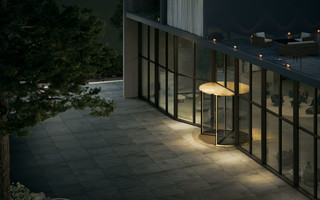

Installation situations in reference objects and videos

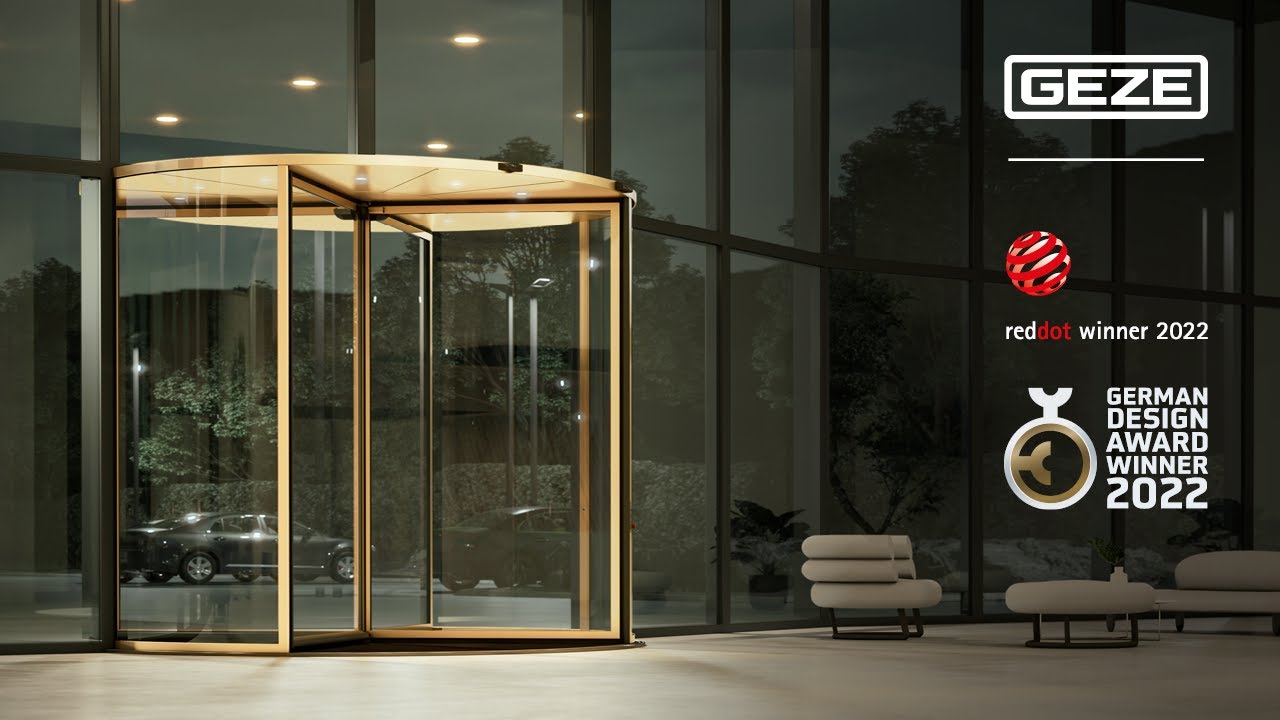

Revo.PRIME teaser
With a minimum canopy height of only 75 mm, the Revo.PRIME impresses with a barely visible drive. Narrowest profile systems of 60 mm will inspire you with maximum design in the entrance area – for more space, more transparency and significantly more lightness.
Revo.PRIME
With convincing innovation, for maximum comfort © GEZE GmbH
Revo.PRIME
Due to the reduced power intake, 30 percent less energy is consumed. Because of this, the Revo.PRIME revolving door impresses in terms of sustainability and is one of the most energy-efficient solutions for entryway areas. © GEZE GmbH
Revo.PRIME
With a low ceiling canopy and narrow profile, for excellent design © GEZE GmbH
Revo.PRIME
The most beautiful way to say welcome © GEZE GmbH
Technical data
| Revo.PRIME manual | |
| Manual operation | Yes |
| With speed limiter (optional) | Yes |
| With positioning device (optional) | Yes |
| Servo function | No |
| Inner diameter (min.) | 1800 mm |
| Inner diameter (max.) | 3800 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 75 mm |
| Side elements version | 10 mm LSG, 22 mm panel lining, 34 mm smooth-surface panel, Special glass on request |
| Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant |
| Floor covering | Entrance mat, Entrance mat according to customer wishes |
| Hot-air curtain system | Electric air curtain, hot water air curtain, possible, depends on the ceiling construction |
| Night-time closer layout | Inside, Outside |
| Night-time closer type | Manual, Automatic |
| Night-time closer design | 10 mm LSG, 22 mm ISO glass, 22 mm panel lining, Special glass on request |
| Lock | Manual, Rod, electromechanical |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
| Underfloor operator | No |
| Disabled person's button | No |
| Standard conformity | EN 16005 |
