Slimdrive

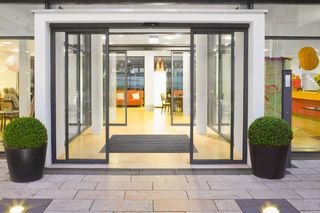

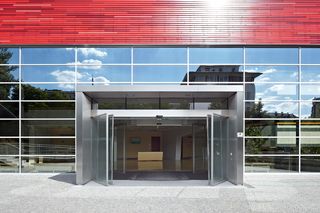

Slimdrive SL-BO * Automatic sliding door system for escape and rescue routes with break-out function

Slimdrive SL-BO Single and double leaf sliding door systems in emergency exits. Inside and exterior doors with the highest safety demands. Façades with narrow post-rail constructions. Function BO allows you to move the leaf and side panels in the direction of emergency exit. Electric locking devices integrated for the mode of operation "night mode". Independent error recognition and recording. Freely configurable inputs and outputs for different functions. Integrated rechargeable battery for emergency opening in case of safety-related errors such as power failure.

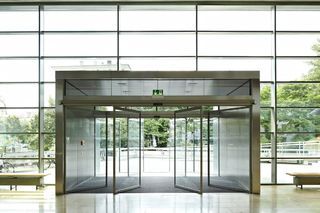

  • BO function allows the leaves and side elements to swing open in the direction of escape
  • Integrated electrical lockings for "night" mode of operation
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
Show more
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Single and double leaf sliding door systems along escape and rescue routes
  • Interior and exterior doors with maximum safety requirements
  • Façades with slim mullion-transom constructions
  • Opening widths of 900 to 2500 mm possible
  • Door leaf weights of up to 100 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass

Technical data

Slimdrive SL-BO
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fine-framed insulating glass Yes
Height 70 mm
Depth 189 mm
Leaf weight (max.) 1-leaf 100 kg
Leaf weight (max.) 2-leaf 100 kg
Opening width 1-leaf 900 mm - 1400 mm
Opening width 2-leaf 1000 mm - 2500 mm
Service temperature 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005
