Slimdrive

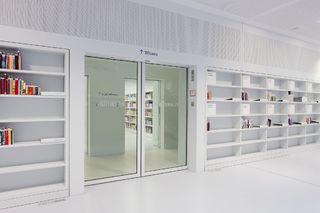

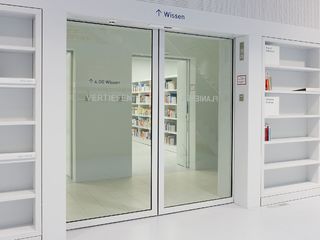

Slimdrive SL-T30 * Automatic sliding door system for fire protection doors with resistance class T30

Slimdrive SL-T 30 Fire protection doors of resistance class T 30 are fire-retardant doors in accordance with DIN 4102 and smoke-proof in accordance with DIN 18095. The closing function remains assured even in case of fire. After the fire alarm and/or after the failure of the mains supply voltage, the door is forced to close by means of pre-stored energy. The T30 sliding door systems are offered in cooperation with partner companies.
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Independent error recognition and recording
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Single and double leaf sliding door systems
  • Door leaf weight of up to 120 kg per leaf
  • Opening widths of 900 to 2500 mm possible

Technical data

Slimdrive SL-T30
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fire protection leaf T30 (Hörmann) Yes
Height 70 mm
Depth 189 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Opening width 1-leaf 700 mm - 2000 mm
Opening width 2-leaf 900 mm - 3000 mm
Service temperature 10 - 40 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity DIN EN ISO 13849: Performance Level D
