Slimdrive SLV * Automatic sliding door system for use on angled façades or corners
- The product is designed and manufactured specifically for each project
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Angle in the drive rail 90° to 270°.
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- Double leaf sliding door systems
- For use on angled façades or corners
- Interior and exterior doors with high access frequency
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Opening widths of 900 to 2500 mm possible
- Door leaf weight of up to 120 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
- Suitable for various profile systems
Installation situations in reference objects and videos

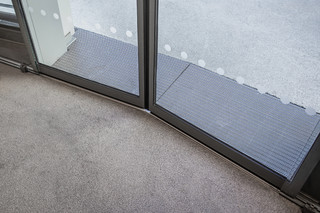

Slimdrive SLV
The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH

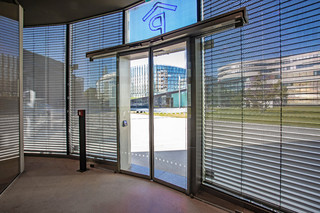

Slimdrive SLV
The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH

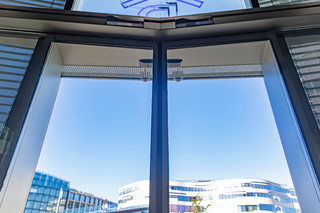

Slimdrive SLV
The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH

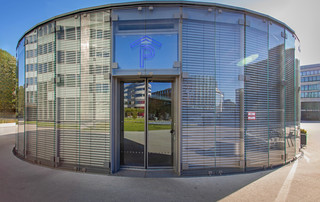

Slimdrive SLV
The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH
Slimdrive SLV
The proven sliding door drive from GEZE ensures standard-compliant protection and a night-time closer, even on angled façade constructions. © Jürgen Biniasch / GEZE GmbH

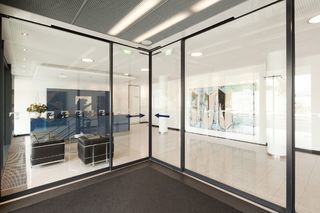

Automatic sliding door drive Slimdrive SLV (corner sliding door) at the office building of Häussler Global Office GmbH, Stuttgart
Very smooth low-wear automatic linear sliding door system with low height and clear design line for optimum ease of access. © Dirk Wilhelmy / GEZE GmbH
Automatic sliding door drive Slimdrive SLV (corner sliding door) at Stachus Passages in Munich
Very smooth low-wear automatic linear sliding door system with low height and clear design line for optimum ease of access. © Robert Sprang / GEZE GmbH
Automatic sliding door drive Slimdrive SLV (corner sliding door) at Hotel Parador National del Saler in Valencia
Very smooth low-wear automatic linear sliding door system with low height and clear design line for optimum ease of access. © Pau Esculies / GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Technical data
| Slimdrive SLV | |
| For 1-leaf door systems | - |
| For 2-leaf door systems | Yes |
| Height | 70 mm |
| Depth | 190 mm |
| Leaf weight (max.) 2-leaf | 120 kg |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |
Downloads
LABELLING OBLIGATION: © Pau Esculies / GEZE GmbH
LABELLING OBLIGATION: © Robert Sprang / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
