Radar movement detectors

GC 304 Radar movement detector with individual adjustment option for activating automatic doors

GC 304 R Radar movement detector
  • Individual settings for challenging environmental conditions
  • Configuration possible via push buttons or remote control
  • Clearly defined radar field (narrow or wide field) with reliable detection
  • Integrated motion tracking also records slow movements
  • Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
  • Door opening impulse only triggered if needed
Contact us

Radar movement detector with individual adjustment option for activating automatic doors

Application Areas

  • Activation of automatic swing, sliding, folding, revolving and curved sliding doors
  • Interior and exterior doors

Technical data

GC 304

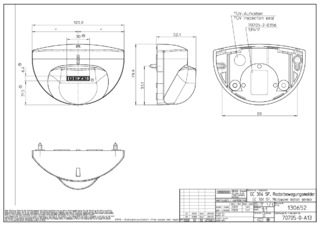

Dimensions 120 x 80 x 50 mm
Technology Electromagnetic radar waves
Operating voltage 12-24 V DC/AC
Operating current 85 mA
IP rating IP54
Cable connection type System plug-type connector
Connector cable length 5000 mm
Installation height (max.) 4000 mm
Transmission frequency 24.175 GHz
Weight 215 g
Service temperature -20 - 55 °C
Humidity < 90% relative, non-condensing
Standard conformity DIN 18650, EN 16005
