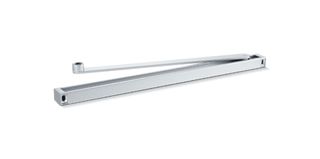

Guide rail TS 5000 / 3000 vertically adjustable * With height compensation +/- 2 mm and lever
- Quick installation due to clip-on slide block
- Horizontally adjustable in the installation position by 4 mm through elongated holes
Application Areas
- Single leaf doors
- Door leaf installation hinge side
- Transom installation hinge and opposite hinge side
- For a height compensation of +/- 2 mm
- Right and left single-action doors
Installation situations in reference objects and videos
TS 5000 door closer installation video
The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.
Technical data
| Guide rail TS 5000 / 3000 vertically adjustable | |
| Length | 448.5 mm |
| Width | 30.5 mm |
| Height | 20.5 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Optional |
| Height correction possible | Yes |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
