TS 1500 G

Closer body TS 1500 G * Main body for overhead door closer with guide rail EN 1

TS 1500 closer body With the overhead door closer TS 1500 the closing speed and end stop can be set, the closing force is variable. It is also available with mounting plate and is suitable for left and right double-action doors without modification.
  • Closing speed can be adjusted from the side via valve
  • Latching action can be adjusted from the side via valve
  • Door closer, can be used for right and left hand doors
Contact us

Main body for overhead door closer with guide rail EN 1

Application Areas

  • Right and left single-action doors
  • Single-action doors up to 750 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side

Technical data

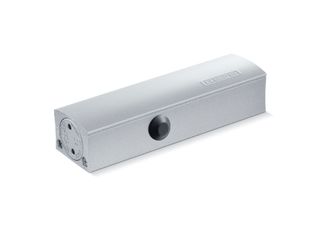

Closer body TS 1500 G
Closing force in accordance with EN 1154 EN 1
Leaf width (max.) 750 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Length 177 mm
Width 39 mm
Height 50 mm
Closing force adjustable No
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
