TS 5000 R

TS 5000 L-R * Overhead door closer with guide rail, for opposite hinge side, for single leaf doors of up to 1400 mm leaf width with electric hold-open device and smoke switch

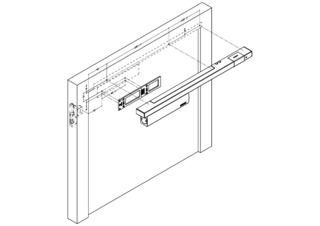

Door closer TS 5000 R Overhead door closer for 1-leaf doors with electromechanical hold-open device and smoke switch, standard installation on door leaf/opposite hinge side
  • Closing force of EN2-6 with variable adjustment
  • Operating voltage 24 V DC
  • Can be used for right and left hand doors without conversion
  • Electric hold-open device in the guide rail with hold-open area from 80°
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Smoke switch with contamination indicator and adaption of the alarm threshold
Show more
  • Additional smoke detectors can be fitted
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation opposite hinge side
  • Hold-open systems with integrated hold-open device

Technical data

TS 5000 L-R
Closing force in accordance with EN 1154 EN 2 - 6
Leaf width (max.) 1400 mm
Type of installation Door leaf installation opposite hinge side
Input voltage 230 V AC
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrical
Hold-open range 80 °
Smoke switch integrated Yes
