TS 5000 L-R

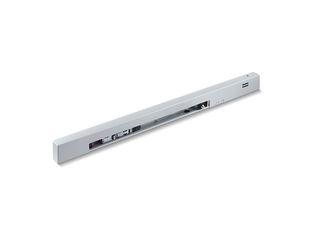

R guide rail BG TS 5000 * With electric hold-open device, smoke switch control unit and lever, opposite hinge side

TS 5000 R guide rail, R guide rail TS 5000 opposite hinge side, TS 5000 R guide rail without electric hold-open device
  • Power supply for 230 V supply voltage
  • Smoke switch with adaption of the alarm threshold, contamination indicator and concealed release button for testing
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Additional smoke switches can be connected
  • Height compensation of +/- 2 mm possible
Contact us

Application Areas

  • Single leaf doors
  • Hold-open systems with integrated hold-open device and smoke switch
  • Installation on the opposite hinge side
  • Right and left single-action doors

Technical data

R guide rail BG TS 5000
Supply voltage 230 V AC
Input voltage 230 V AC
Frequency of supply voltage 50/60 Hz
Duty rating 100 %
IP rating IP20
Standard conformity EN 1155
Approvals General building approval from DIBt as a hold-open system
Length 745 mm
Width 55 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
Hold-open range 80 °
Smoke switch integrated Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
Height correction possible Yes
Flexible opening restrictor Yes
