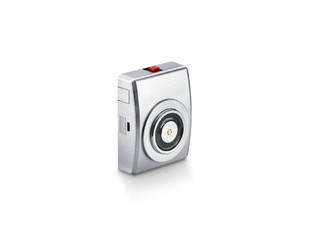

TS 5000 ISM

Hold-open magnet wall installation surface-mounted * For wall installation surface mounting or floor mounting with accessories and base

Hold-open magnet wall installation surface mounting
  • High retention force of 490N
Contact us

Application Areas

  • Use for hold-open angles up to 180°, ideal for exact holding open
  • Use in harsh environments such as industrial buildings
  • Places of public assembly and highly frequented sports venues
  • Approved for GEZE hold-open systems
  • Wall installation surface mounted
  • Floor installation with accessories and base

Technical data

Hold-open magnet wall installation surface-mounted
Dimensions 110 x 85 x 40 mm
IP rating IP65 Magnet; IP20 connection
Type of installation Surface-mounted, Floor
Line-feed Back side
Area of application Inside

Variants & Accessories
