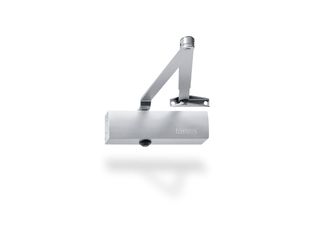

TS 1500 * Overhead door closer with link arm for single leaf doors of up to 1100 mm leaf width with adjustable closing speed
- Variable closing force of EN3 or EN4 by reversing the bearing block
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
Application Areas
- Right and left single-action doors for interior use
- Single-action doors up to 1100 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
Installation situations in reference objects and videos
Technical data
TS 1500 | |
Closing force in accordance with EN 1154 | EN 3/4 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
Leaf width (max.) | 1100 mm |
Type of installation | Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side |
Opening angle (max.) | 180 ° |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, via installation |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via link arm |
Downloads
LABELLING OBLIGATION: © Robert Les / GEZE GmbH
LABELLING OBLIGATION: © Robert Les / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
