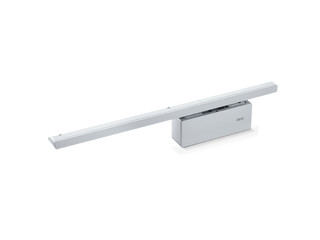

Door draw-in damper

GEZE ActiveStop surface-mounted configured Door damping on both sides for interior swing doors, configured for timber or glass doors

GEZE ActiveStop aufliegend, silber, Glas Betreten Sie Ihre Räume bequemer als je zuvor: Die GEZE ActiveStop-Türdämpfung kann Türen sanft stoppen, leise schließen und komfortabel offen halten. Damit gehören knallende Türen, eingeklemmte Finger und Macken in Wänden oder Möbeln der Vergangenheit an.
  • Door opening angle with variable adjustment from 80°-140°
  • Can be used for right and left hand doors without conversion
  • Soft opening and closing of doors up to max. 45 kg leaf weight
  • Gentle stopping, quiet closing and comfortable keeping open of doors
  • Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
  • Secure holding of the door when open, meaning no door is stopper necessary
Show more
  • Opening and closing damping when installed can be set via a valve
  • Integrated safety valve offers overload protection
Contact us

Application Areas

  • Right and left single-action doors for interior use
  • Room doors with high access convenience
  • Single-action doors up to 1100 mm leaf width
  • Surface-mounted installation, for retrofitting on existing doors
  • Barrier-free access in accordance with DIN 18040-2

Technical data

GEZE ActiveStop surface-mounted configured
Depth 34 mm
Height 68 mm
Leaf weight (max.) 45 kg
Leaf width (max.) 1100 mm
Category of door flush-mounted, rebated
Identical design for DIN left and DIN right Yes
Installation type surface-mounted
Adjustable draw-in damper Yes, via valve
Draw-in damper in direction of closing movement from 25 °
Free swing area 25 ° - 60 °
Draw-in damper in direction of opening movement from 60 °
Adjustable door opening angle Yes, stepless
Hold-open position adjustable 80 ° - 140 °
Safety valve againts overload Yes
