OL 320

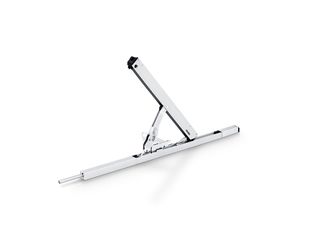

Scissors OL 320 * Scissors OL 320 with sliding leaf bracket and unhinging inhibitor

OL 320 open Surface-mounted fanlight opener for rectangular windows with an opening width of 320 mm
  • Achieves an opening width of 320 mm
  • The opening width can be adjusted
  • Leaf bracket suitable for overlap heights of 0-25 mm
  • Integrated leaf locking mechanism in the scissors
  • Release button blocked by unhinging inhibitor
  • Connection from the scissor to the leaf bracket cannot be triggered via the release button
Show more
  • Convenient hanging of the leaf via ball head coupling connection between the scissor and the leaf bracket
  • Scissors can be installed from the front
Contact us

Application Areas

  • For windows with high leaf weights up to max. 250 kg
  • Can be used on the left and right
  • Inward-opening rectangular windows with bottom-hung, top-hung, side-hung and centre pivoted leaves
  • Installation on wooden, PVC or metal windows
  • Frame installation

Technical data

Scissors OL 320
Leaf width (min.) 680 mm
Leaf height (min.) 400 mm
Leaf weight (max.) 250 kg
Adjustable opening width (stroke reduction) Yes
