TZ 320 BS AP * Door control unit for controlling escape route doors with illuminated emergency exit sign and key switch

TZ 320 / TZ 321 SN, AP
  • Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
  • Coloured connectors facilitate electrical connection
  • Three freely configurable inputs and two freely configurable outputs offer numerous possibilities for additional components
  • Number of inputs and outputs can be expanded using the IO 420 interface module or the KL 220 clamping box
  • Illuminated emergency exit sign improves visibility
  • Integrated key switch enables authorised passing through the emergency exit
Contact us

Application Areas

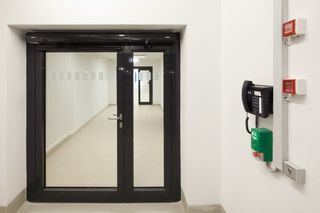

  • EltVTR-compliant protection of an emergency exit against unauthorised access

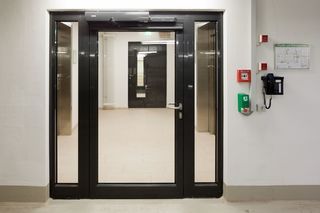

  • Can be used on single and double leaf doors
  • Connectivity via bus enables e.g. interlocking door system control, forwarding of alarms, connection to building management system
  • Can be combined with motor locks and swing door drives
  • Realisation of a bidirectional emergency exit
  • Surface-mounted installation allows subsequent installation on the door with little effort

Technical data

TZ 320 BS AP
Width 77 mm
Height 197 mm
Depth 88 mm
Type of installation Surface-mounted
Service temperature -10 - 55 °C
IP rating IP30
Operating voltage 24 V DC
Current consumption 130 mA
Illuminated Yes
Supply voltage 24 V DC
Power supply for external consumers (24 V DC) 650 mA
Contact rating 30 V / 1 A
Sabotage contact Yes
Number of inputs 3 Stk.
Number of outputs 2 Stk.
Emergency push button Yes
Visual display yes
Volume 75 db
Type of cylinder Euro profile half cylinder
With ribbon cable Yes
Parameter setting Service terminal ST 220
Conforms to the EltVTR (guidelines for electronic locking systems) Yes
