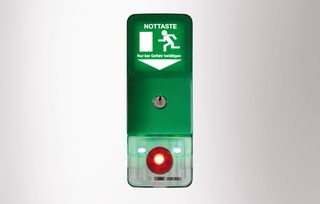

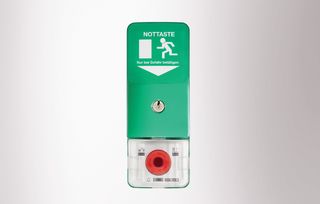

TZ 320 S AP * Door control unit for controlling escape route doors with key switch

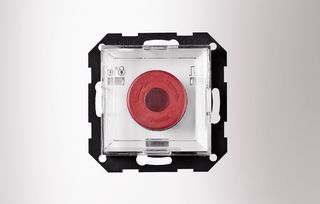

  • Flat impact cover enables fast and safe activation of the illuminated emergency button in panic situations
  • Coloured terminals simplify installation
  • Three freely configurable inputs and two freely configurable outputs offer numerous possibilities for additional components
  • Number of inputs and outputs can be expanded using the IO 420 interface module or the KL 220 clamping box
  • Integrated key switch enables authorised access to emergency exit
Contact us

Door control unit for controlling escape route doors with key switch

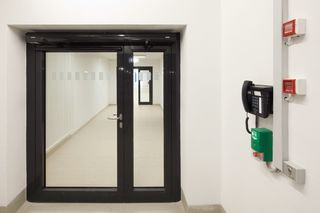

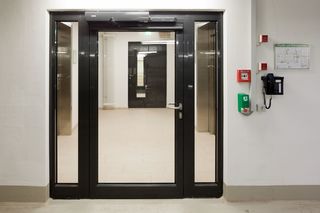

Application Areas

  • EltVTR-compliant protection of an emergency exit against unauthorised access
  • Can be used on single and double leaf doors
  • Connectivity via bus enables e.g. interlocking door system control, forwarding of alarms, connection to building management system
  • Can be combined with motor locks and swing door drives
  • Realisation of a bidirectional emergency exit
  • Surface-mounted installation allows subsequent installation on the door with little effort

Technical data

TZ 320 S AP
Width 77 mm
Height 197 mm
Depth 88 mm
Operating voltage 24 V DC
Supply voltage 24 V DC
Current consumption 100 mA
Contact rating 30 V / 1 A
Sabotage contact Yes
Number of inputs 3 Stk.
Number of outputs 2 Stk.
Emergency push button Yes
Visual display yes
Acoustic signal 75 dB
Temperature range -10°C...+55°C
IP rating IP30
Type of installation Surface-mounted installation
Type of cylinder Euro profile half cylinder
With ribbon cable Yes
Parameter setting ST 220 service terminal
conforms to the EltVTR (guidelines for electronic locking systems) Yes
