TS 3000 V

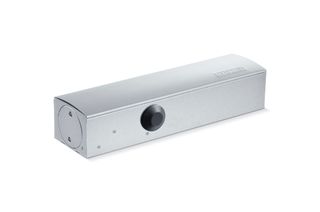

Closer body TS 3000 V * Main body for overhead door closer with guide rail EN 1-4
- Closing force with variable adjustment from the side
- Closing seed can be adjusted from the front via valve
- Latching action can be adjusted from the front via valve
- Door closer, can be used for right and left hand doors
- Door closer, can be used for leaf and transom installation
- Minimal installation effort due to low number of individual parts and quick setting
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1100 mm leaf width
- Door leaf and transom installation on the hinge and opposite hinge side
Technical data
| Closer body TS 3000 V | |
| Closing force in accordance with EN 1154 | EN 1 - 4 |
| Leaf width (max.) | 1100 mm |
| Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side, Transom installation hinge side |
| Opening angle (max.) | 180 ° |
| Identical design for DIN left and DIN right | Yes |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006 |
| Suitability for fire protection doors | Yes |
| Mounting plate with hole pattern in accordance with EN 1154 supplement | Yes |
| Length | 226 mm |
| Width | 46 mm |
| Height | 60 mm |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | No |
| Position of closing force adjustment | At the side |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
