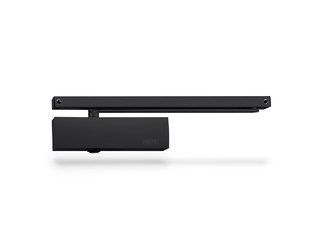

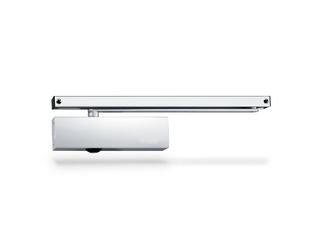

TS 3000 V * Overhead door closer with guide rail for single leaf doors with a leaf width up to 1100 mm
- Closing force EN1-4 with variable adjustment
- Can be used for right and left hand doors without conversion

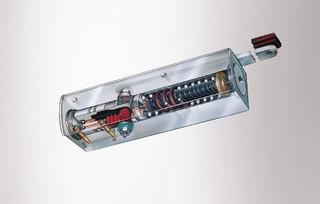

- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- All functions can be set from the front (except for closing force)
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1100 mm leaf width
- Door leaf and transom installation on the hinge and opposite hinge side
Installation situations in reference objects and videos
GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L
The guide rail BG lintel mounting TS 3/5000 L offers the option of mounting directly in the lintel of a door without additional accessories such as a lintel bracket. © GEZE GmbH

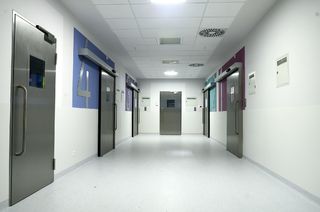

Hygienic Doors at Children's Memorial Health Institute
Doors in the corridor of the Children's memorial health institute in Warsaw, Poland, with TS 3000 V and TS 2000 V BC at swing doors. Hygienic doors, doorway, window and safety technology for health care, for hospitals. © H. Łukasz Janicki / GEZE Polska

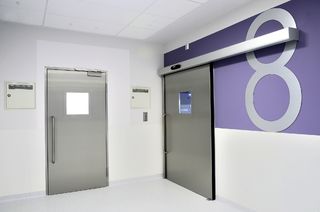

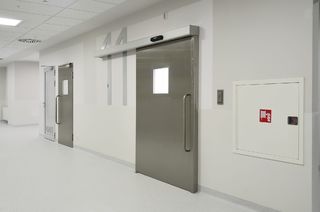

Hygienic Doors at Children's Memorial Health Institute
Operating room doors in the corridor of the Children's memorial Health Institute in Warsaw, Poland. Hygienic doors, doorway, window and safety technology for health care, for hospitals. © H. Łukasz Janicki / GEZE Polska

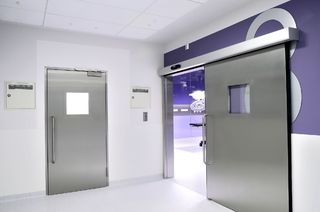

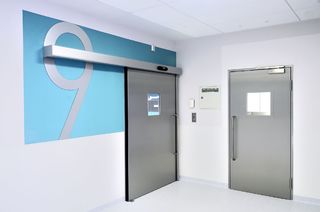

Hygienic Doors at Children's Memorial Health Institute
Operating room doors in the corridor of the Children's memorial Health Institute in Warsaw, Poland. Hygienic doors, doorway, window and safety technology for health care, for hospitals. © H. Łukasz Janicki / GEZE Polska
Hygienic Doors at Children's Memorial Health Institute
Operating room doors in the corridor of the Children's memorial Health Institute in Warsaw, Poland. Hygienic doors, doorway, window and safety technology for health care, for hospitals. © H. Łukasz Janicki / GEZE Polska

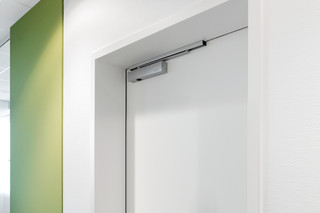

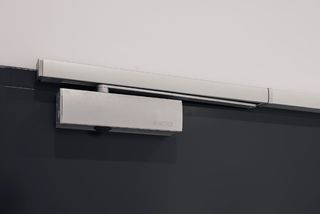

Door closer TS 3000 V at Medicus Clinic in Wrocławiu, Poland
Overhead door closer with guide rail for single leaf doors with hydraulic latching action accelerating the door just before reaching the closed position © Fotografia Maciej Lulko / GEZE GmbH

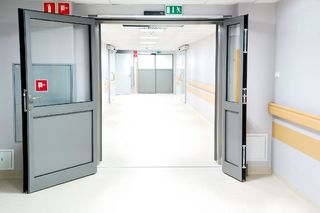

Door closer TS 3000 in the hospital
The door closer TS 3000 fits perfectly into the overall environment in the children's hospital Warsaw, Poland. © Łukasz Janicki / GEZE GmbH
Door closer TS 5000 und 3000 ISM at the Military Institute of Medicine
Door closer TS 5000 This door closer for single leaf doors represents clear lines. It is approved for installation on fire and smoke protection doors and for installing 3000 integrated closing sequence controls at the Military Medical Institute in Warsaw, Poland. © Łukasz Janicki / GEZE GmbH
Door closer TS 3000 V und TS 5000 R in office & corporate buildings
The door closers blend perfectly into the overall environment with their minimal design. In addition, they provide optimum ease of access. © Dirk Wilhelmy / GEZE GmbH
Technical data
| TS 3000 V | |
| Closing force in accordance with EN 1154 | EN 1 - 4 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1100 mm |
| Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side, Transom installation hinge side, Door leaf installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | No |
| Position of closing force adjustment | At the side |
| Hold-open function | Optional |
Downloads
LABELLING OBLIGATION: © Łukasz Janicki / GEZE GmbH
LABELLING OBLIGATION: © Fotografia Maciej Lulko / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
LABELLING OBLIGATION: © Łukasz Janicki / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © H. Łukasz Janicki / GEZE Polska
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
