Guide rail 1-leaf

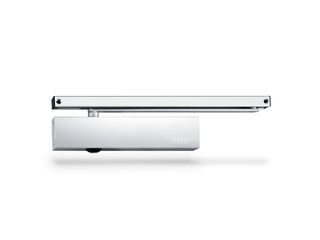

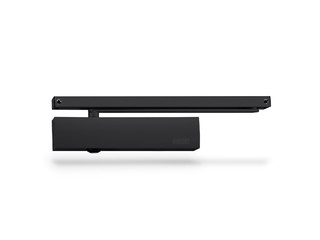

TS 5000 Overhead door closer with guide rail for single leaf doors with a leaf width up to 1400 mm

TS 5000 door closer TS 5000, overhead door closer with guide rail for 1-leaf doors
  • Closing force of EN2-6 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
Show more
  • All functions can be adjusted from the front
Contact us

TS 5000

Overhead door closer with guide rail for single leaf doors with a leaf width up to 1400 mm

This overhead door closer for single leaf doors represents clear lines. It is authorised for installation on fire and smoke protection doors.

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side

This product has been awarded

Labels EPD environmental product declaration

Installation situations in reference objects and videos

Door closer TS 5000, installed at the Generali company building in Cologne. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000, installed at the Generali company building in Cologne.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Lothar Wels / GEZE GmbH

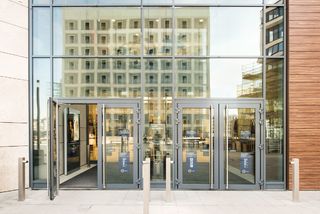

Door closer TS 5000 on an exterior door to the inner courtyard of the Kö-Bogen II Whether installed on interior or exterior doors, the TS 5000 offers proven function & quality. Its timeless design is also available in all RAL colours.

Door closer TS 5000 on an exterior door to the inner courtyard of the Kö-Bogen II

Whether installed on interior or exterior doors, the TS 5000 offers proven function & quality. Its timeless design is also available in all RAL colours. © Jürgen Biniasch / GEZE GmbH

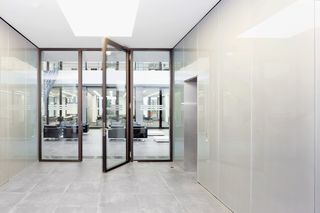

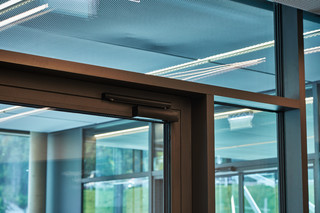

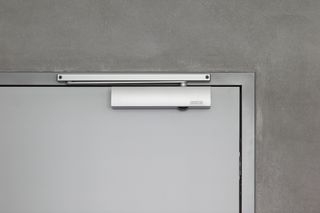

Discreet design for contemporary swing doors: the GEZE TS 5000 door closer The TS 5000 reliably closes doors and integrates well into the architecture

Discreet design for contemporary swing doors: the GEZE TS 5000 door closer

The TS 5000 reliably closes doors and integrates well into the architecture © Nicolas Thome / GEZE GmbH

TS 5000 + OL 90 N post-frame transmission, Augustinum TS 5000: Fire and smoke protection doors + OL 90 N: Inward opening bottom-hung windows, post-frame transmission

TS 5000 + OL 90 N post-frame transmission, Augustinum

TS 5000: Fire and smoke protection doors + OL 90 N: Inward opening bottom-hung windows, post-frame transmission © Dirk Wilhelmy / GEZE GmbH

Door closer TS 5000, Integra care homes, Ronnenberg The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000, Integra care homes, Ronnenberg

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Lothar Wels / GEZE GmbH

Door closer TS 5000 in the entrance hall of Sports Hall in Zadar, Croatia. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000 in the entrance hall of Sports Hall in Zadar, Croatia.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Robert Les / GEZE GmbH

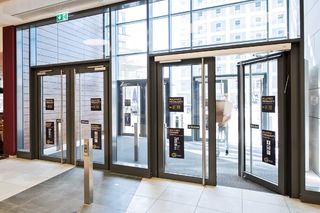

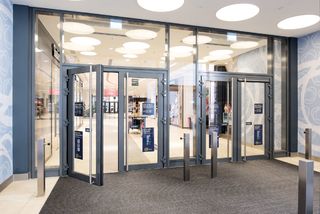

Overhead door closer with guide rail - TS 5000 and swing door drive/door closer - TSA 160 NT IS/TS, Milaneo The TS 5000 L provides ease of access for visitors because heavy doors are slowed down close almost silently. These attributes also apply to the TSA 160 NT IS/TS only, that it also has the integrated Push & Go function.

Overhead door closer with guide rail - TS 5000 and swing door drive/door closer - TSA 160 NT IS/TS, Milaneo

The TS 5000 L provides ease of access for visitors because heavy doors are slowed down close almost silently. These attributes also apply to the TSA 160 NT IS/TS only, that it also has the integrated Push & Go function. © Jürgen Pollak / GEZE GmbH

Overhead door closer with guide rail - TS 5000 and swing door drive/door closer - TSA 160 NT IS/TS, Milaneo The TS 5000 L provides ease of access for visitors because it decelerates heavy doors during closing, allowing them to close almost silently. These attributes also apply to the TSA 160 NT IS/TS, although it also has the integrated Push & Go function.

Overhead door closer with guide rail - TS 5000 and swing door drive/door closer - TSA 160 NT IS/TS, Milaneo

The TS 5000 L provides ease of access for visitors because it decelerates heavy doors during closing, allowing them to close almost silently. These attributes also apply to the TSA 160 NT IS/TS, although it also has the integrated Push & Go function. © Jürgen Pollak / GEZE GmbH

Door closer TS 5000, installed in the Textile and Industrial Museum in Augsburg. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000, installed in the Textile and Industrial Museum in Augsburg.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Dirk Wilhelmy / GEZE GmbH

Door closer TS 5000 in the retirement home in Bad Lippspringe. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000 in the retirement home in Bad Lippspringe.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Martin Jakob / GEZE GmbH

Door closer TS 5000 installed at Sports Hall in Zadar, Croatia. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000 installed at Sports Hall in Zadar, Croatia.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Robert Les / GEZE GmbH

Door closer TS 5000 with T-Stop guide rail Door closer TS 5000 with T-Stop guide rail, installed in the administration of the Catholic Church Stuttgart.

Door closer TS 5000 with T-Stop guide rail

Door closer TS 5000 with T-Stop guide rail, installed in the administration of the Catholic Church Stuttgart. © Dirk Wilhelmy / GEZE GmbH

Door closer TS 5000 installed at the entrance hall of Sports Hall in Zadar, Croatia. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000 installed at the entrance hall of Sports Hall in Zadar, Croatia.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Robert Les / GEZE GmbH

Overhead door closer TS 5000, installed at Sports Hall in Zadar, Croatia. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Overhead door closer TS 5000, installed at Sports Hall in Zadar, Croatia.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Robert Les / GEZE GmbH

Door closer TS 5000 installed at the company building near vector, Stuttgart. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000 installed at the company building near vector, Stuttgart.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Dirk Wilhelmy / GEZE GmbH

Panorama restaurant on the summit of the Zugspitze At almost 3,000 m above sea level, the multifunctional restaurant presents itself as an architectural feast for the eyes. GEZE door and security systems ensure that everything runs smoothly and conveniently on arrival. The different areas and multifunctional rooms make it possible - for a unique experience at lofty heights.

Panorama restaurant on the summit of the Zugspitze

At almost 3,000 m above sea level, the multifunctional restaurant presents itself as an architectural feast for the eyes. GEZE door and security systems ensure that everything runs smoothly and conveniently on arrival. The different areas and multifunctional rooms make it possible - for a unique experience at lofty heights. © Robert Sprang / GEZE GmbH

Access solution with TS 5000, TSA 160 NT IS / TS and RWA K 600 T at the Milaneo Stuttgart The products combine to create a result that offers visitors the best possible ease of access.

Access solution with TS 5000, TSA 160 NT IS / TS and RWA K 600 T at the Milaneo Stuttgart

The products combine to create a result that offers visitors the best possible ease of access. © Jürgen Pollak / GEZE GmbH

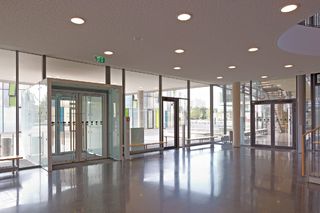

Door closer TS 5000, Munich vocational school centre The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000, Munich vocational school centre

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Robert Sprang / GEZE GmbH

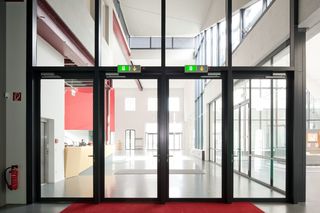

Entrance vocational school centre with swing doors and emergency exit The interaction of the TS 5000, Slimdrive SD Servo and TS 5000 R IS results in the optimum ease of access as well as the maximum accessibility.

Entrance vocational school centre with swing doors and emergency exit

The interaction of the TS 5000, Slimdrive SD Servo and TS 5000 R IS results in the optimum ease of access as well as the maximum accessibility. © Robert Sprang / GEZE GmbH

Door closer TS 5000 installed at the Rheinlandhaus in Cologne. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000 installed at the Rheinlandhaus in Cologne.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Lothar Wels / GEZE GmbH

Door closer TS 5000 in the entrance hall of Sports Hall in Zadar, Croatia. The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check.

Door closer TS 5000 in the entrance hall of Sports Hall in Zadar, Croatia.

The door closer allows for optimum ease of access and perfectly fits into the overall environment. The TS 5000 not only offers hydraulic latching action but also a back check. © Robert Les / GEZE GmbH

TS 5000 door closer installation video

The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.

Technical data

TS 5000
Closing force in accordance with EN 1154 EN 2 - 6
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1400 mm

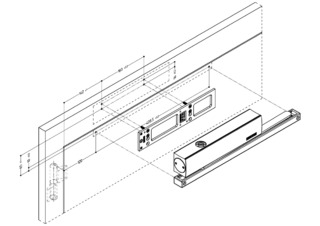

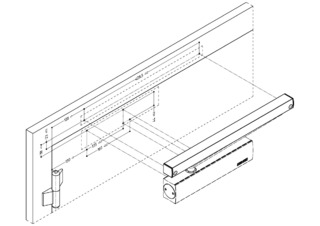

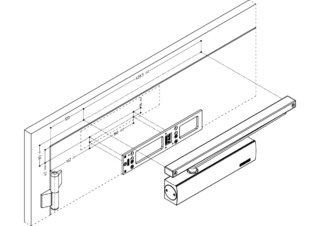

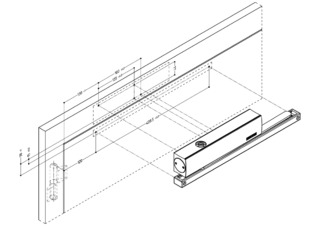

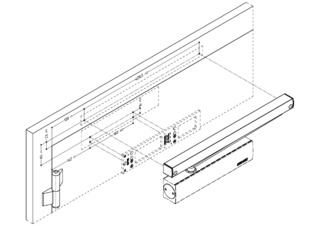

Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Optional

Downloads

Variants & Accessories

Guide rail TS 5000/TS 3000 vertically adjustable
Parts

Guide rail TS 5000 / 3000 vertically adjustable

With height compensation +/- 2 mm and lever

Product details
Guide rail TS 3/5000 BG
Parts

Guide rail TS 5000 / 3000

Standard guide rail with lever

Product details
GEZE TS 5000 Closer body
Parts

Closer body TS 5000

Main body for overhead door closer with guide rail EN 2-6 with back check
