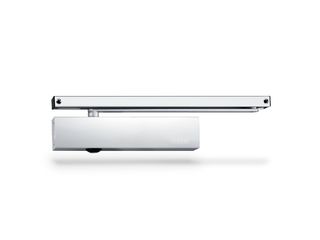

TS 5000 L SoftClose * Opposite hinge side overhead door closer with guide rail for single-leaf doors up to 1400 mm leaf width with latching action and brake-to-stop function
- Closing force with variable adjustment EN3-6
- Can be used for right and left hand doors without conversion
- Latching action/smooth latching function can be adjusted from the front via valve
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
This overhead door closer for single leaf doors represents clear lines. It is authorised for installation on fire and smoke protection doors.
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation opposite hinge side and transom installation hinge side
Installation situations in reference objects and videos
TS 5000 SoftClose in action
Particularly suitable for noise-sensitive areas: Our TS 5000 SoftClose closes every door gently and safely. It ensures an optimum balance between force and closing speed – both in wind and suction as well as in changing pressure conditions.
Scenario | TS 5000 SoftClose door closer | Close doors quietly and securely at all times
GEZE product manager Dietmar Botosch demonstrates how the TS 5000 SoftClose door closer can meet the challenge of closing doors reliably and quietly at all times - both against the air buffer effect with closed windows and with low resistance with open windows.
TS 5000 door closer installation video
The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.
Technical data
| TS 5000 L SoftClose | |
| Closing force in accordance with EN 1154 | EN 3 - 6 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1400 mm |

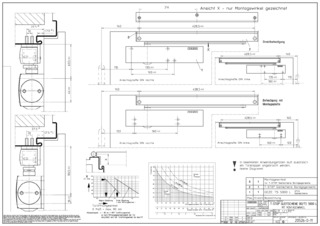

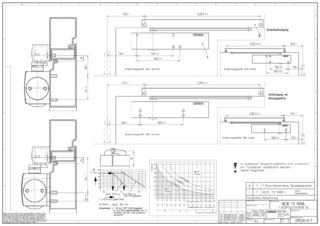

| Type of installation | Transom installation hinge side, Door leaf installation opposite hinge side |
| Opening angle (max.) | 120 ° |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Latching action speed, adjustable | Yes |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open function | Optional |
