Boxer P

Guide rail Boxer P 20.7 mm With an overall height of 20.7 mm and lever for double-action doors (Boxer 2-4 only)

Guide rail Boxer 20.7 mm
  • End position correction of +/- 0.8° possible
  • With screwed slide block
  • Retention force of the hold-open mechanism can be adjusted
Contact us

Application Areas

  • Single leaf doors
  • Integrated installation
  • Right and left double-action doors
  • To hold open on non-fire protection doors

Technical data

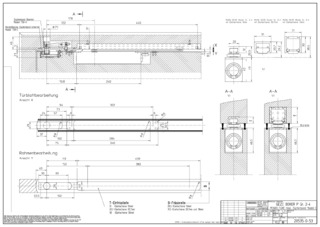

Guide rail Boxer P 20.7 mm
Length 440 mm
Width 31 mm
Height 20.7 mm
opening restrictor upgradable Yes
Hold-open function Mechanical
Hold-open device can be switched on and off Yes
Hold-open device can be overridden Yes

Variants & Accessories
