Boxer 1-leaf

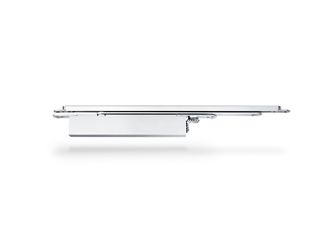

Boxer P * Integrated door closer for single leaf double-action doors with a leaf width of up to 1100 mm

Boxer P
  • Closing force of EN2-4 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Door closer is embedded in the door leaf and frame and fulfils the highest design demands
  • Integrated back check, slows down doors that are thrown open forcefully
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
Show more
  • All functions can be adjusted in the installed state
Contact us

Application Areas

  • Fire and smoke protection doors, proof of suitability for the door required
  • Right and left double-action doors
  • Double-action doors up to 1100 mm leaf width and 80 kg weight
  • For door leaf thicknesses from 40 mm
  • Integrated installation

Technical data

Boxer P
Closing force in accordance with EN 1154 EN 2 - 4
Leaf width (max.) 1100 mm
Leaf weight (max.) 120 kg
Type of installation Concealed
Opening angle (max.) 120 °
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Top
Hold-open function Optional
